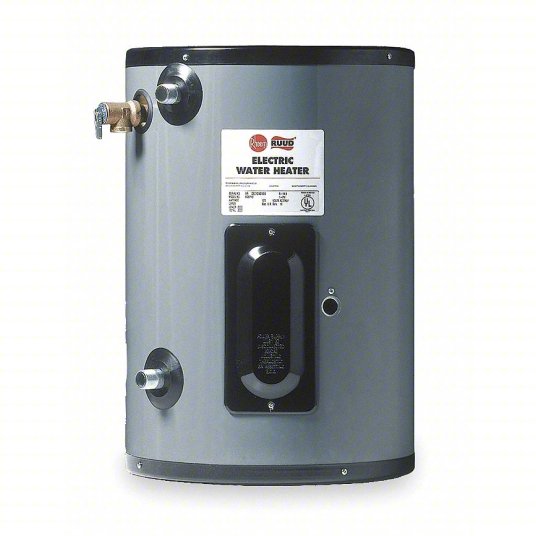

Point-of-Use Electric Water Heater: 120V AC, 19.9 gal, 3,000 W, Single Phase, 25.12 in Ht
- Item
- 3CFG3
- Mfr. Model
- EGSP20 120V
-
Compact commercial electric water heaters have a smaller footprint than regular water heaters for use where space is limited. They are ideal for low-demand applications where having the hot water source near the point of use is critical.
- Brand
- RHEEM-RUUD
- Manufacturer Part Number
- EGSP20 120V
- Standards
- ASME; CSA Certified; UL Listed
- Market
- Commercial
- Operating Voltage
- 120V AC
- Manufacturer Warranty Length
- 3 yr Limited Tank
- Maximum Delivered Temperature
- 170 °F
- Maximum Recovery Flow Rate
- 30 gph @ 40°F
- Number of Elements
- 1
- Tank Capacity
- 19.9 gal
- Maximum Water Pressure
- 150 psi
- Overall Width
- 19.75 in
- Overall Depth
- 19.75 in
- Overall Height
- 25.12 in
- Included Valves
- Temperature and Pressure Relief
- Power Consumption
- 3,000 W
- Water Connection Location
- Side
- Current
- 25 A
- Phase
- Single
- Recovery Rate @ Rise
- 10 gph @ 120°F; 12 gph @ 100°F; 15 gph @ 80°F; 20 gph @ 60°F; 30 gph @ 40°F; 9 gph @ 140°F
- Thermal Efficiency
- Not Rated
- Tank Diameter
- 19.75 in
- Environment
- Indoor
- Tank Outer Shell Material
- Steel
- Tank Outer Shell Finish
- Porcelain Enamel
- Cold Inlet Size
- 3/4 in
- Hot Outlet Size
- 3/4 in
- Automatic Thermostat
- Yes
- Thermostat Mounting
- Surface
- Overheat Protection
- Yes
- Features
- Automatic Temperature Control
- Includes
- Resistor Elements; Surface Mounted Thermostat
- Minimum Delivered Temperature
- 110 °F
- Height to Hot Outlet
- 22.62 in
- Height to Cold Inlet
- 5.12 in
- Tank Insulation Material
- Polyurethane
- Height to T and P Valve
- 19.62 in
- Cold Inlet Type
- NPT
- Hot Outlet Type
- NPT
- Mounting Type
- Wall Mounting
- UNSPSC
- 40101825
- Country of Origin
- Mexico
