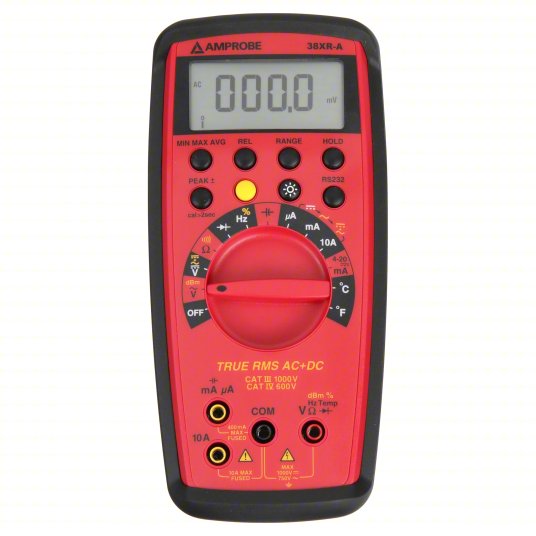

AMPROBE Digital Multimeter: CAT IV 600V, TRMS, 1,000 V Max AC Volt Measurement, 10,000, LCD
Brand AMPROBE
AC Response CalculationTRMS
Instrument Safety RatingCAT IV 600V
Calibration Certificate IncludedNo
Maximum AC Voltage Measurement1,000 V
Maximum DC Voltage Measurement1,000 V
Display TypeLCD
Instrument Counts10,000
Maximum AC Current Measurement10 A
Maximum DC Current Measurement10 A
Multimeter StyleFull Size
Parameters Measured
- AC Voltage
- DC Voltage
- AC Current
- DC Current
- Capacitance
- Frequency
- Resistance
- Temperature (K)
Data LoggingYes
Bluetooth CompatibleNo
Dustproof No
Intrinsically Safe No
Removable Screen No
Thermal Imaging No
Waterproof No
AC Current Measurement Resolution1 u A
AC Voltage Measurement Resolution1 V
Capacitance Measurement Resolution40 nF
DC Current Measurement Resolution1 uA
DC Voltage Measurement Resolution1 V
Frequency Measurement Resolution100 Hz
Resistance Measurement Resolution1,000 ohm
Temperature Measurement Resolution0 °C
Basic AC Current Accuracy± (1.5 % rdg + 20 dgts)
Basic AC Voltage Accuracy± (1.2 % rdg + 10 dgts)
Basic DC Current Accuracy± (0.5 % rdg + 10 dgt)
Basic DC Voltage Accuracy±0.25% + 5 Digits
Capacitance Measurement Accuracy± (3.0 % rdg + 5 dgts)
Frequency Measurement Accuracy± (0.1% rdg + 5 dgts)
Resistance Measurement Accuracy±2%
Temperature Measurement Accuracy-20 °C to 10 °C: ± (2.0 % rdg + 4 °C ) 10 °C to 200 °C: ± (1.0 % rdg + 3 °C ) 200 °C to 1300 °C: ± (2.0 % rdg + 2 °C ) -4 °F to 50 °F: ± (2.0 % rdg + 8 °F) 50 °F to 400 °F: ± (1.0 % rdg + 6 °F) 400 °F to 2372 °F: ± (2.0 % rdg + 4 °F)
Includes9V Battery (Installed); Magne-Grip™ Holster with Magnetic Hanging Strap; Spare Fuse; Temperature Adapter; Test Leads with Threaded Alligator Clips; Type K Thermocouple Probe
Manufacturer Part Number38XR-A
Audible ContinuityYes
Data HoldYes
Maximum Resistance Measurement40 megaohm
Diode TestYes
Auto Power OffYes
Auto RangingYes
StandardsIEC 6F22; JIS 006P; NEDA 1604
Manufacturers Warranty Length3 yr
Bar Graph IncludedYes
Battery AccessYes
Battery Size9V
Minimum/Maximum MemoryYes
Computer Interface Connection TypeNone
Weight1 lb
Maximum Storage Temperature140 °F
Minimum Storage Temperature-4 °F
Maximum Operating Temperature113 °F
Minimum Operating Temperature32 °F
Duty CycleYes
Maximum Capacitance Measurement400 uF
Maximum Frequency Measurement10 MHz
Maximum Temperature Measurement2,372 °F
Peak Hold Yes
Battery Chemistry Alkaline
Depth2.4 in
Overall Height 7.7 in
Overall Width 3.6 in
Fuse AccessYes
Minimum Resistance Measurement 1,000 ohm
Minimum Frequency Measurement 100 Hz
Minimum Capacitance Measurement 40 nF
True RMS Bandwidth 2 kHz
Batteries IncludedYes
Maximum Sound Level Measurement50 dB
UNSPSC41113630
Country of OriginTaiwan (subject to change)
These instruments have built-in data logging capability that records and stores data without connecting to an external device like a smartphone or PC. Data can later be retrieved and stored for analysis. They are commonly used for field or remote applications.
Item 1WKP6
Mfr. Model 38XR-A
